ARM Motorsports 335i/xi/is and 135i/1M N54 Charge Pipe - TiAL Flange
Why do you need to upgrade the N54 charge pipe for your 135i? The OEM BMW charge pipe is a ticking time bomb for any N54 135i running higher than stock boost. Its plastic design will adequately hold the boost on stock settings, but on tuned cars it is prone to bursting. In addition, the OEM diverter valves are another component not designed for high-boost and can leak boost, limiting the power your 135i can put down. Don't wait until yours breaks to upgrade this critical component of your N54!

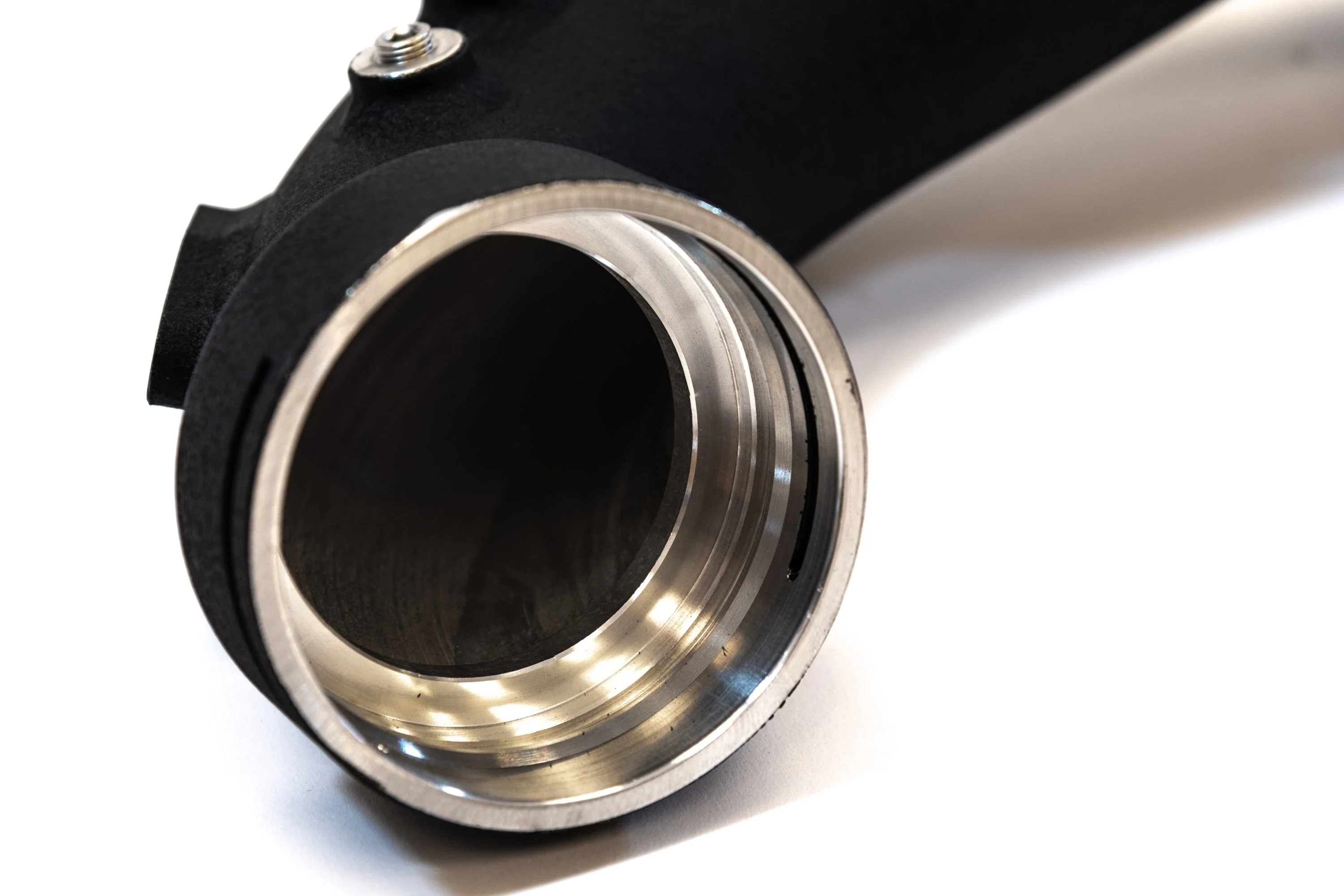

The ARM Motorsports N54 charge pipe is designed to handle the highest levels of boost. Constructed of 6061 aluminum, the ARM N54 135i charge pipe connects to the throttle body using a precision CNC machined connection which is secured by the OEM metal C-Clip. It also includes an upgraded O-Ring for a secure and leak-free seal.

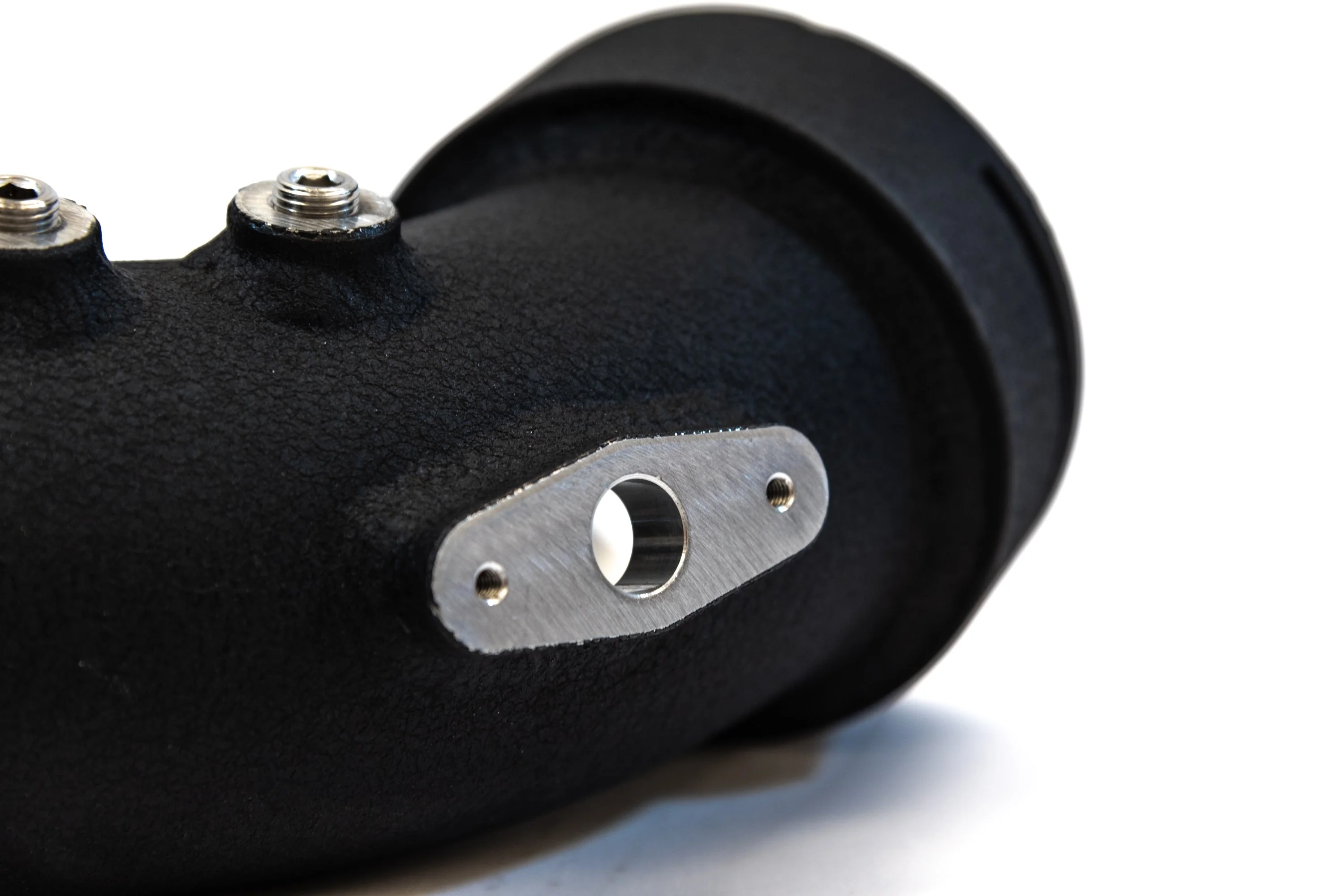

The ARM N54 Charge Pipe is engineered to optimize airflow between the intercooler and the throttle body. To further increase the performance of your 135i, there are two hookups for either methanol or nitrous which come pre-capped. For reconnecting your factory TMAP sensor, there is a CNC machined flange for perfect fitment with new bolts to replace the course threaded factory screws.
The ARM N54 Charge Pipe has an integrated blow-off valve flange designed for the 50mm TiAL Q BOV (BOV sold separately). Most importantly, it will ensure that all of your boost makes it into the engine to maximize power output from your 135i.
Features:
-
Handles High Boost
-
Dual Meth / Nitrous Bungs
-
Complete with Hoses and Hardware
-
Leak Free Seal
-
3" Construction
What's Included:
- ARM N54 Charge Pipe
- Silicone Elbow
- Meth / Nitrous Plugs
- Hardware Kit
FITMENT GUIDE
| Make | Chassis | Model | Engine |
| BMW | E82 | 1M Coupe | N54 3.0L |
| BMW | E82 | 135i | N54 3.0L |
| BMW | E88 | 135i | N54 3.0L |
| BMW | E90 | 335i | N54 3.0L |
| BMW | E90 | 335xi | N54 3.0L |
| BMW | E92 | 335i | N54 3.0L |
| BMW | E92 | 335is | N54 3.0L |
| BMW | E92 | 335xi | N54 3.0L |
| BMW | E93 | 335i | N54 3.0L |
| BMW | E93 | 335is | N54 3.0L |
$46.30
Original: $132.30
-65%ARM Motorsports 335i/xi/is and 135i/1M N54 Charge Pipe - TiAL Flange—
$132.30
$46.30Product Information
